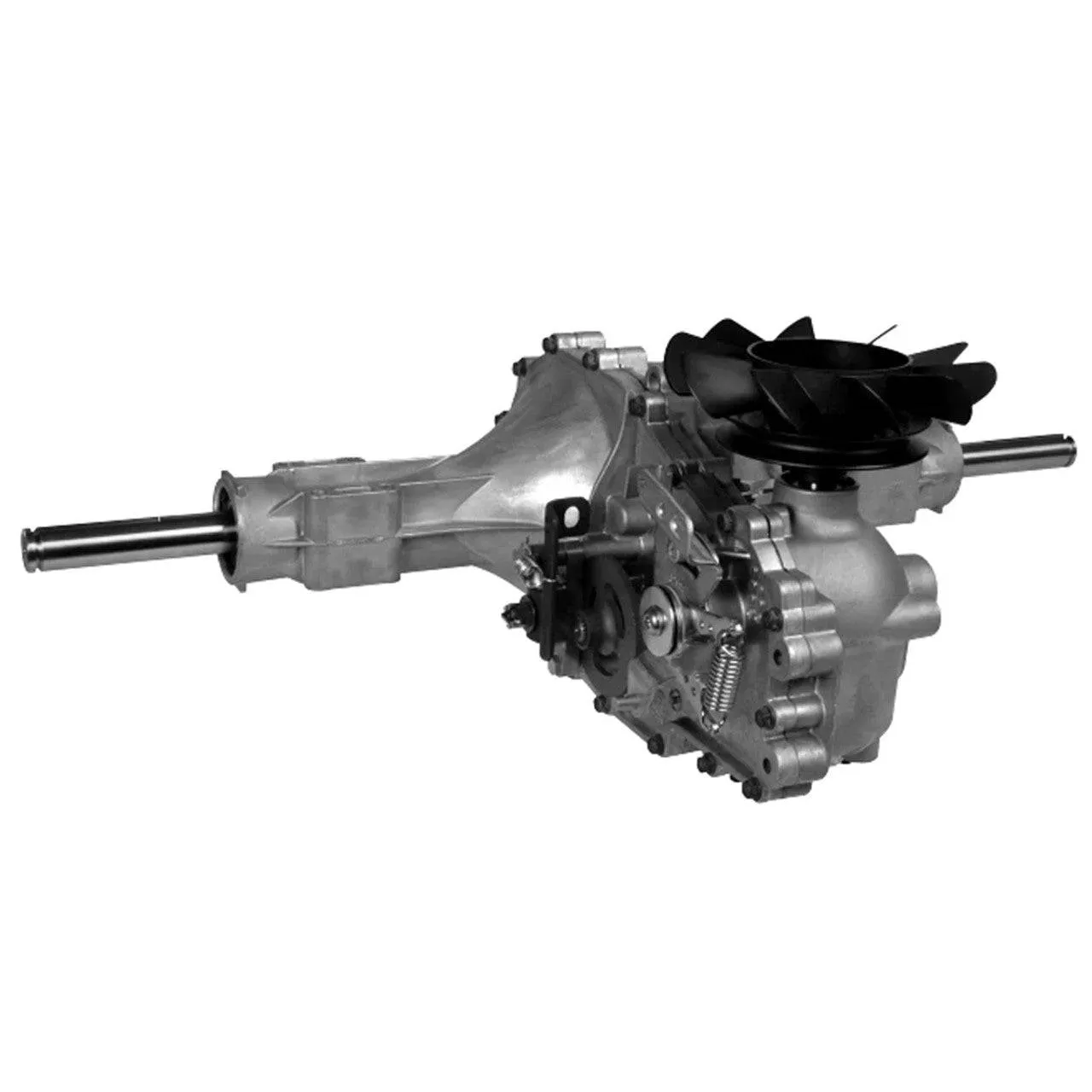

Hydro Gear G730 Transaxle G7-BCBB-1XDC-1FCA Specs
Manufacturer: Hydro-Gear, Inc
Part number: G7-BCBB-1XDC-1FCA
This product replaces: No superseded info available
| Motor Displacement | 0.97 in3/rev [16 cc/rev] |
| Input Speeds | Max Hi-Idle (no load): 3600 rpm Min (loaded): 1800 rpm |
| Output Torque | Intermittent: 445 lb-ft (603 N-m) Continuos: 230 lb-ft (312 N-m) |
| Maximum Tire Diameter | 23 in (584 mm) |
| Axle Shaft Diameter | 1.375 in [35 mm] |
| Axle Shaft End Options | Two Flats Keyed |
| Weight on Tires (per unit) | Maximum with 20?ö tires: 770 lb (350 kg) Maximum with 22?ö tires: 700 lb (318 kg) Maximum with 23?ö tires: Maximum with 23?ö tires |
| Parking Brake Type | Disc |
| Weight of Unit | 42 lb (19 kg) |
